cell-border-spec

Table セルの BorderSpec を指定します。

説明

NULL の場合、Table は cell-border-width と cell-margin を使用して、Table セルのボーダーとマージンを指定します。

NULL でない場合は、BorderSpec に指定されたボーダーとマージンを使用します。BorderSpec.left-border-width、BorderSpec.right-border-width、BorderSpec.top-border-width、および BorderSpec.bottom-border-width のどれもが null であると、Table は cell-border-width で指定された値を使用します。

同様に、BorderSpec.left-margin、BorderSpec.right-margin、BorderSpec.top-margin、および BorderSpec.bottom-margin のどれもが null であると、Table は cell-margin で指定された値を使用します。

例

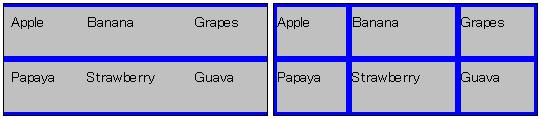

例: BorderSpec の使用

{define-proc package {make-table
                         cell-border-style:BorderStyle,
                         cell-border-color:FillPattern =
                             FillPattern.blue,
                         cell-border-spec:#BorderSpec = null
                     }
    {return
        {Table
            columns = 3,
            width = 7cm,
            height = 3cm,
            background = FillPattern.silver,
            border-width = 1pt,
            border-color = FillPattern.black,
            cell-border-style = cell-border-style,
            cell-border-color = cell-border-color,
            cell-border-width = 2pt,
            cell-margin = 5pt,
            cell-border-spec = cell-border-spec,
            "Apple", "Banana", "Grapes",
            "Papaya", "Strawberry", "Guava"
        }
    }
}

{spaced-hbox
    margin = 2pt,
    || Note that this Table is setting the left and right cell
    || border width to 0pt. Since top and bottom cell border width
    || are not specified in the BorderSpec they will be equal to
    || the value of the cell-border-width option on the Table.
    {make-table
        BorderStyle.flat,
        cell-border-spec =
            {BorderSpec
                left-border-width = 0pt,
                right-border-width = 0pt
            }
    },
    || Note that this Table is setting the left and right cell
    || margin to 0pt. Since top and bottom cell margin are not
    || specified in the BorderSpec they will be equal to the
    || value of the cell margin option on the Table.
    {make-table
        BorderStyle.flat,
        cell-border-spec =
            {BorderSpec
                left-margin = 0pt,
                right-margin = 0pt
            }
    }
}
